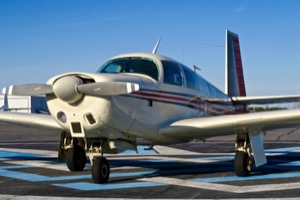

1978 Mooney M20C
AIRCRAFT SPECIFICATIONS
N-Number: N73SD S/N: 20-1252

Share:

♦ Download This Spec Sheet
♦ Email This Spec Sheet

SOLD! Let us find one like this for you!

This quick bird is one of the best-equipped, low-time M20C airframes available, with Garmin 430 WAAS and ADS-B out compliant. Super clean with fresh interior. Legendary Mooney economy and speed - and this one has been well-cared for. Features many STCs, including Rear Cargo Floor for loads up to 250 lbs.

Airframe: 1,569 Hours
Engine: 1,569 Hours SFNEW
PROP: 1,569 HOURS SNEW PROP 2: 261 HOURS IRAN

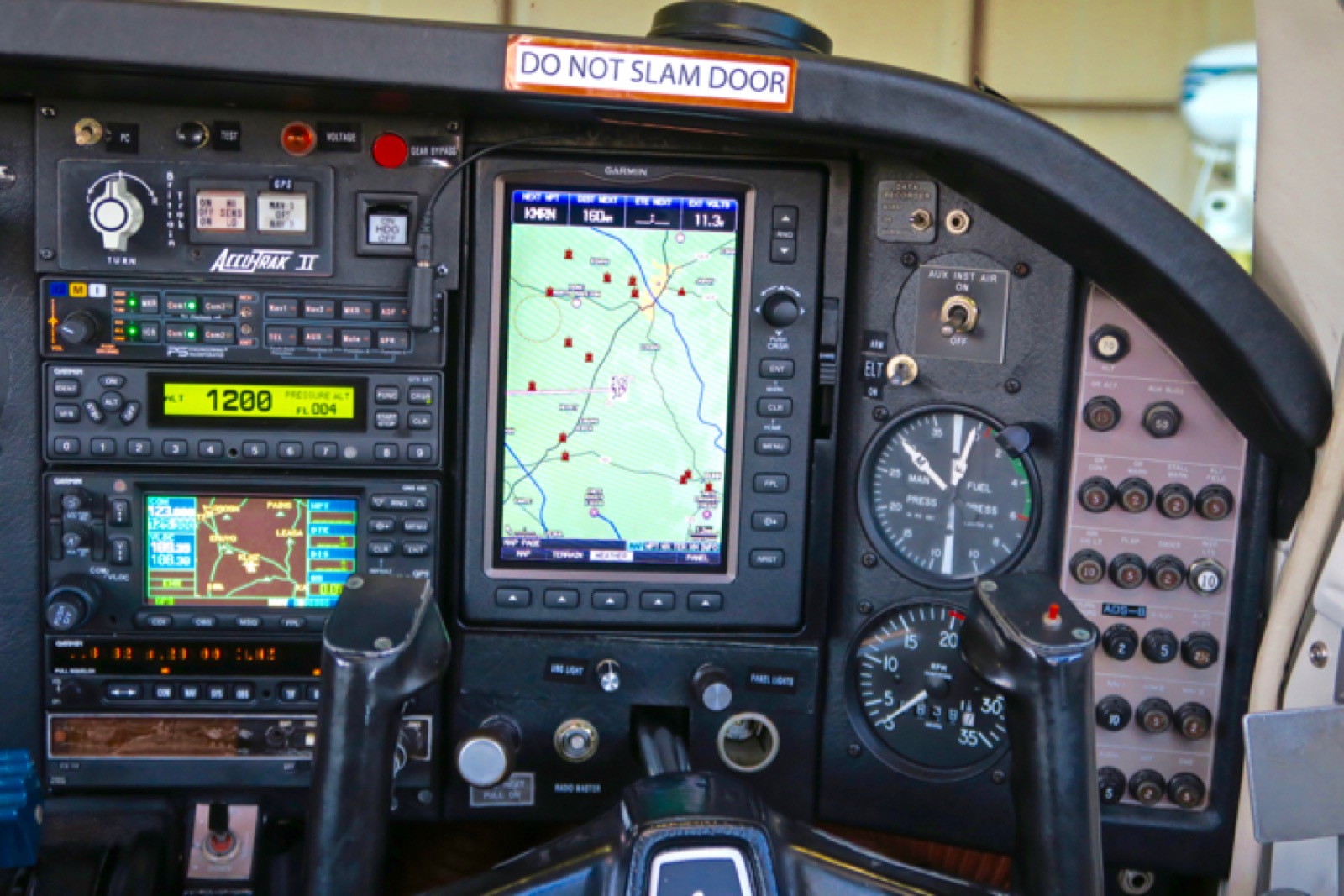

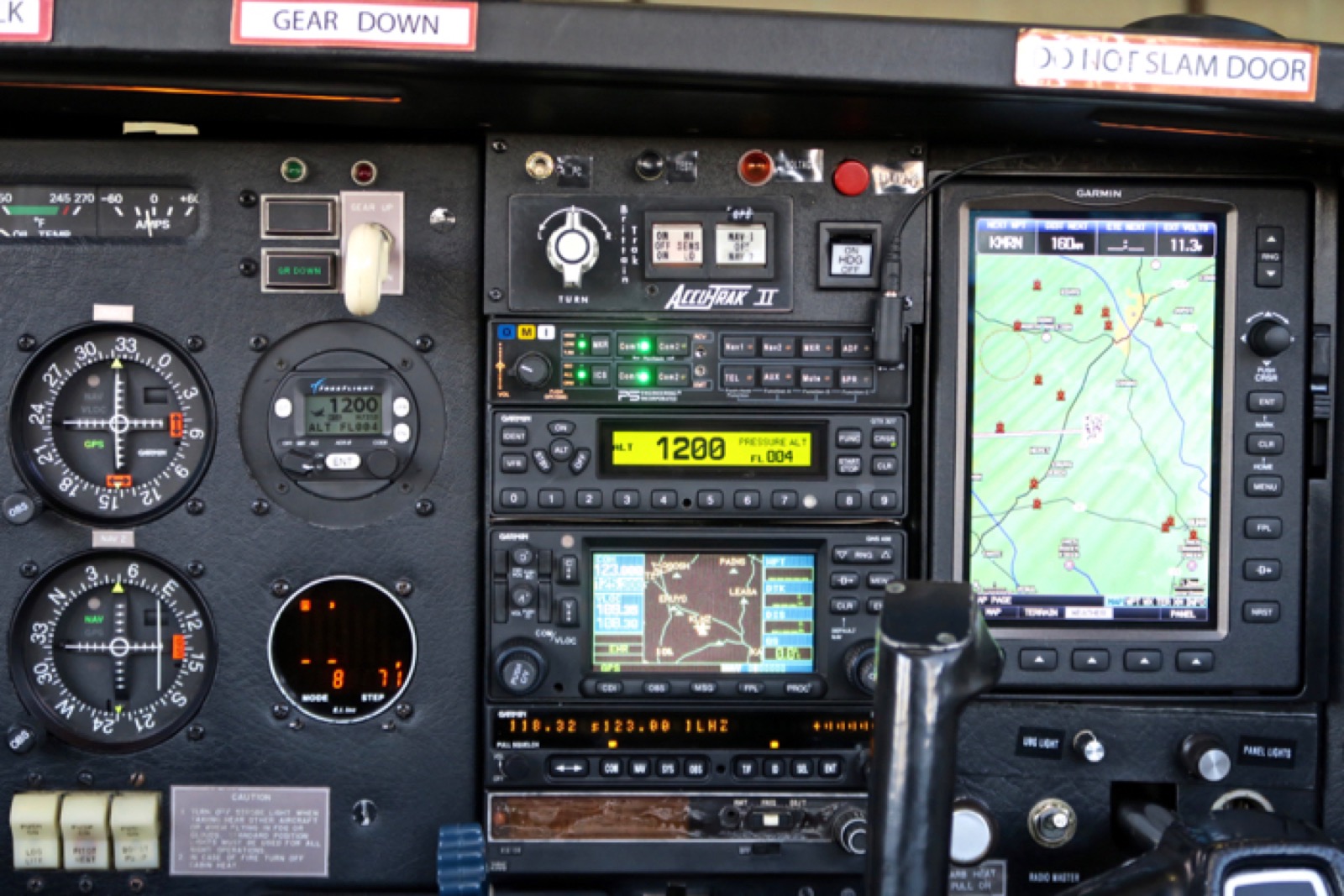

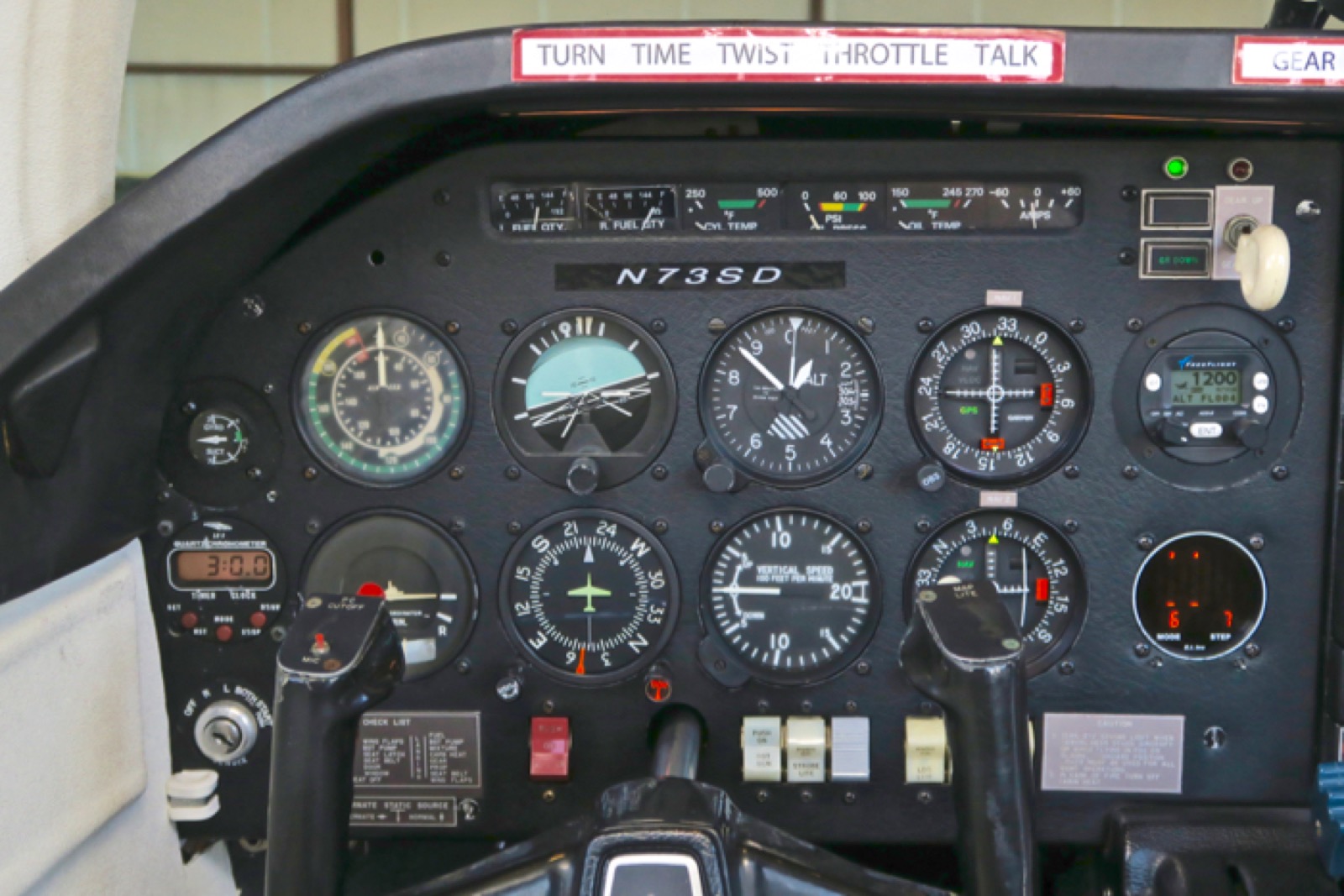

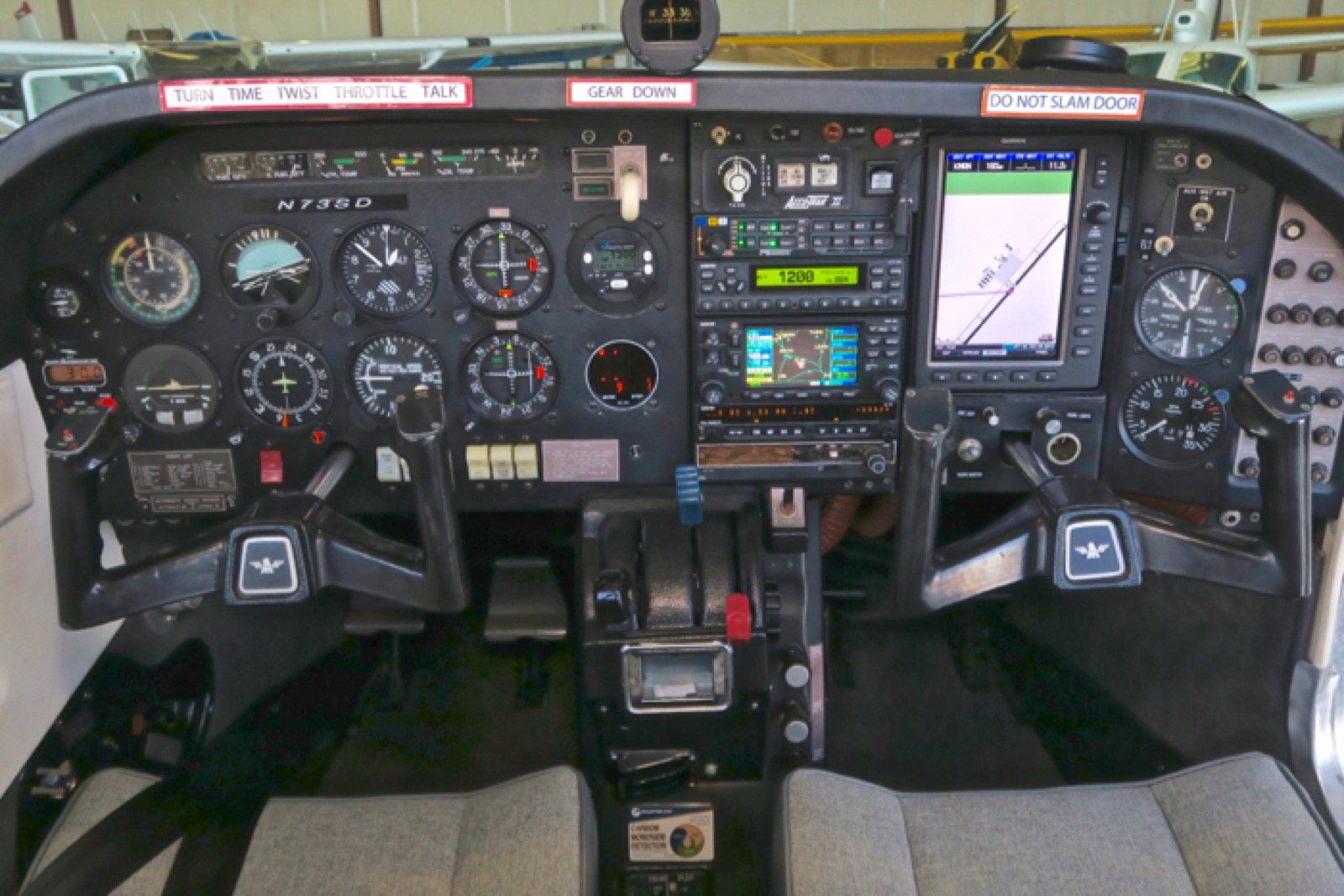

Avionics
Garmin GNS-430W WAAS IFR GPS/NAV/COMM
Garmin GPSMAP 696
- XM Weather and Audio
- AirGizmo Panel Mounted
- Crossfeed input from GNS-430
Garmin SL-30 NAV/COMM
Dual Garmin GI-106A GPS/VOR/LOC/GS Indicators
Garmin GTX 327 Mode C Transponder
ADS-B Out Freeflight Ranger (2020 compliant)

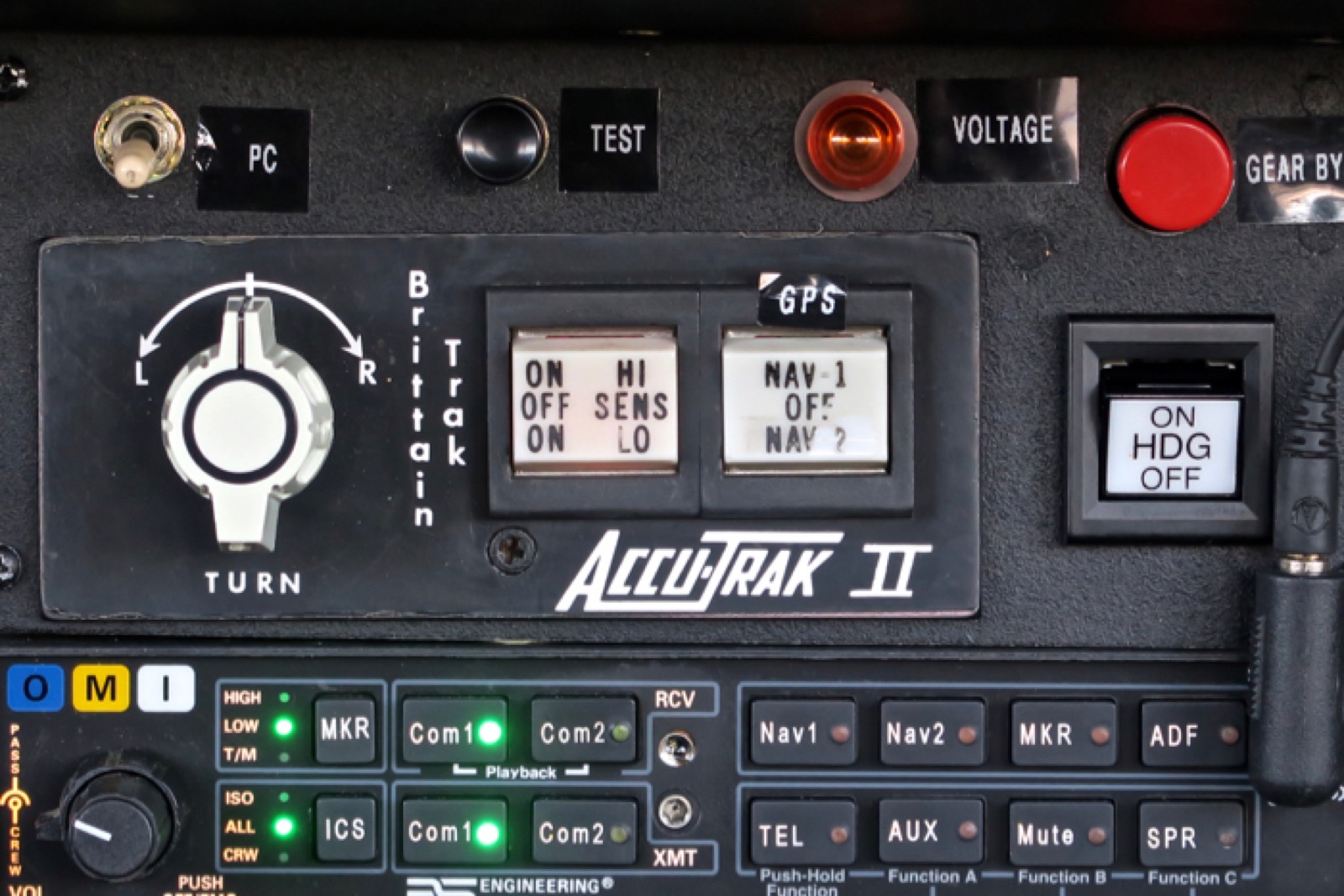

Brittain Accu-track II NAV Tracking System
Brittain Accu-flight Heading Pre-Select System
Brittain PC single-axis autopilot (no altitude hold)
PS Engineering PMA-8000B Audio Panel
- Marker Beacons
- 4-place Stereo Intercom
King KN 64 DME
12v Power Outlet
Avionics Master Switch
Electronics International UBG 16 Digital Engine Monitor

Features
Tanis Oil Heater
Plane Power Alternator
Electric Gear
Electric Flaps
Rudder and Brake Pedal Extension Kit
64 gal. Long Range Fuel Tanks
Bruce's Custom Cover
Tail Cover (Horiz. Stab.)

STCs
Custom Rear Cargo Floor STC
- loads up to 250 lbs
- rear bench seat may be removed and floor installed
O & N Fuel Bladders STC
Guardian I Standby Vacuum STC
Lasar Flap Gap Seal STC
Lasar Aileron STC
Lasar Break Wheel Cylinder Rotation STC
Lasar Cowl Closure Fiaring STC
Brittain AccuTrack Autopilot STC
- AccuFlight Heading Pre-Select STC
E.I.UBG-16 Engine Analyzer STC
E.I. Black Box Data Recorder STC
Brackett Air Filter STC

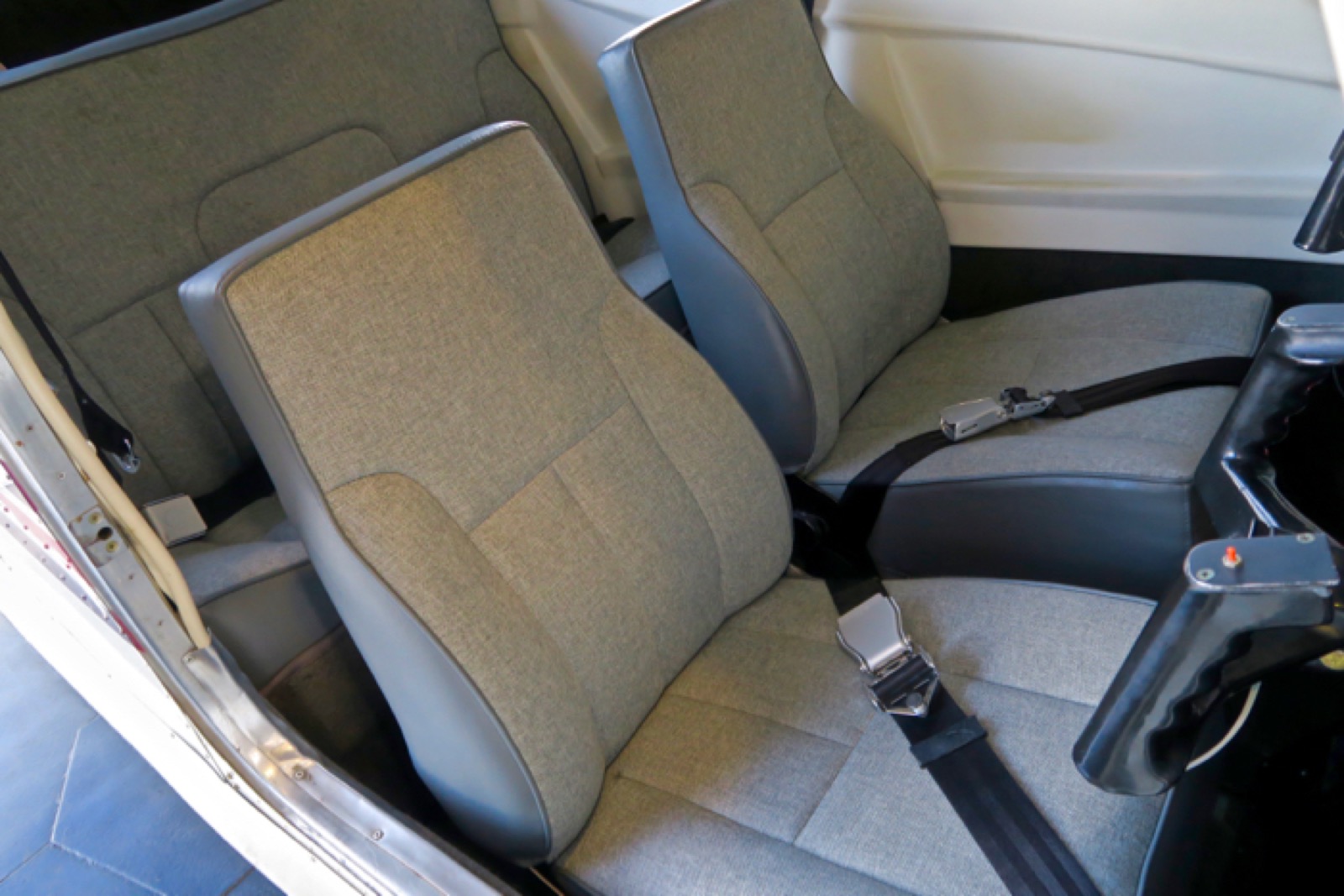

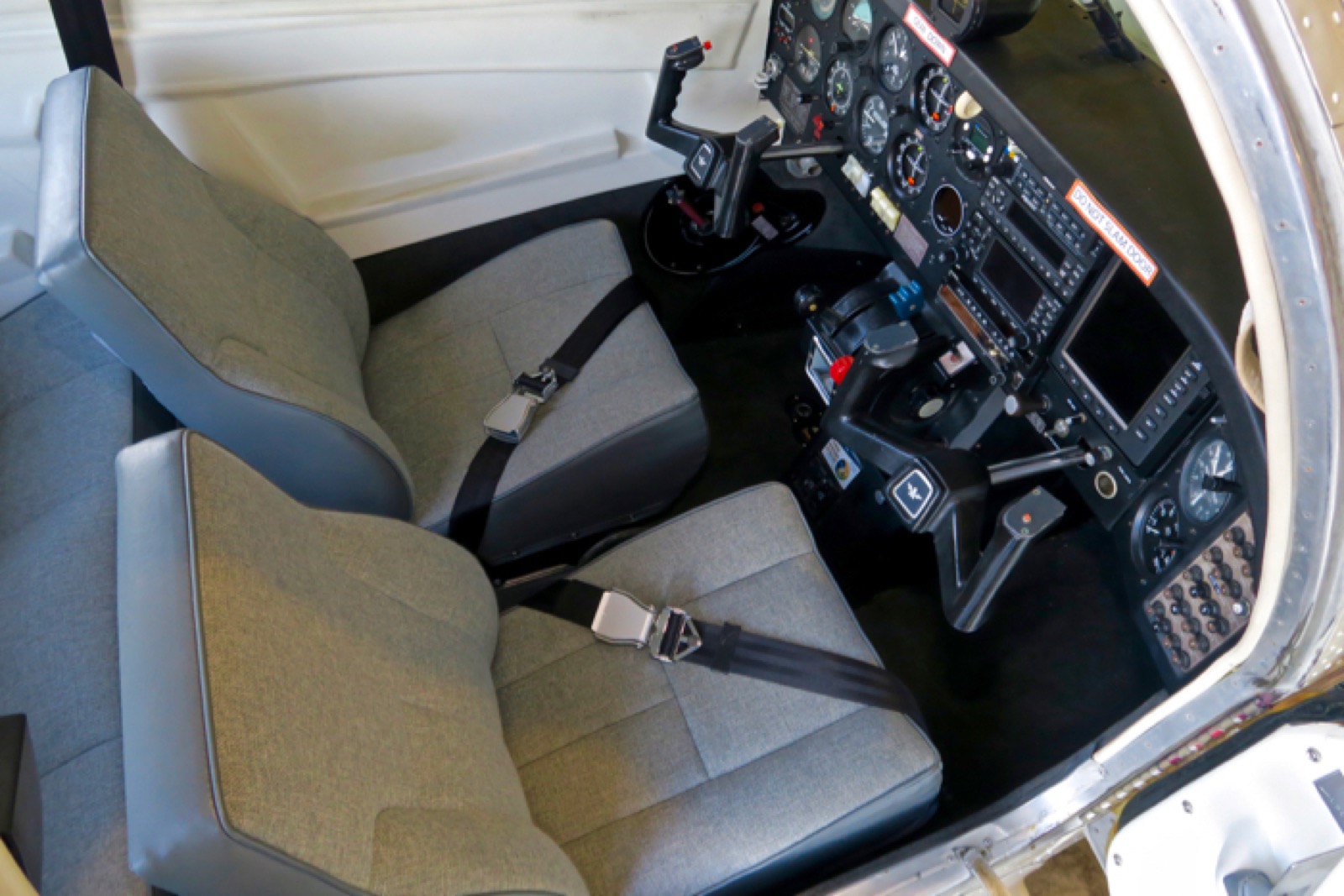

Interior
Excellent condition
2011 Airtex Interior
Recent light gray cloth and vinyl seating with dark gray carpets/light gray side panels.

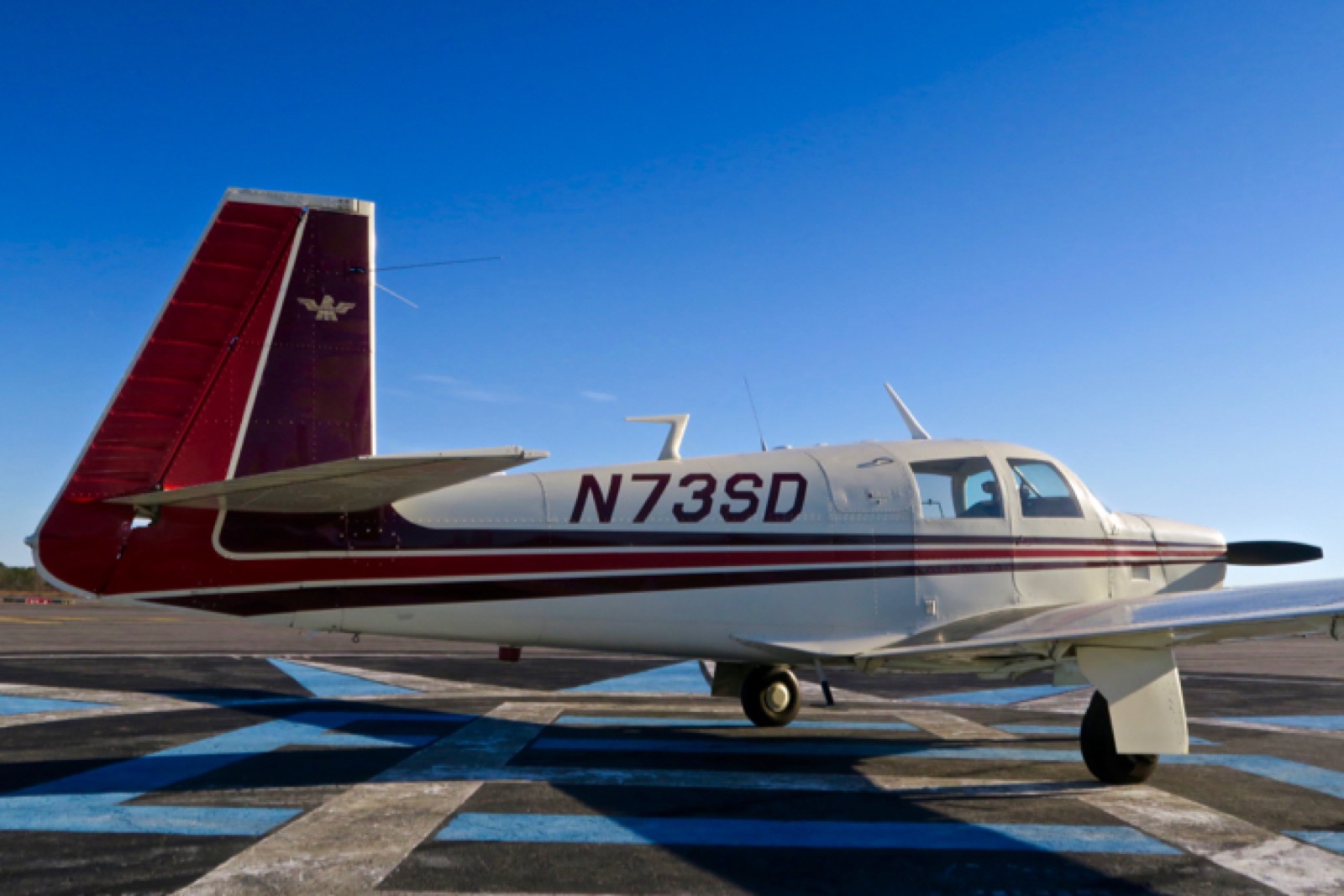

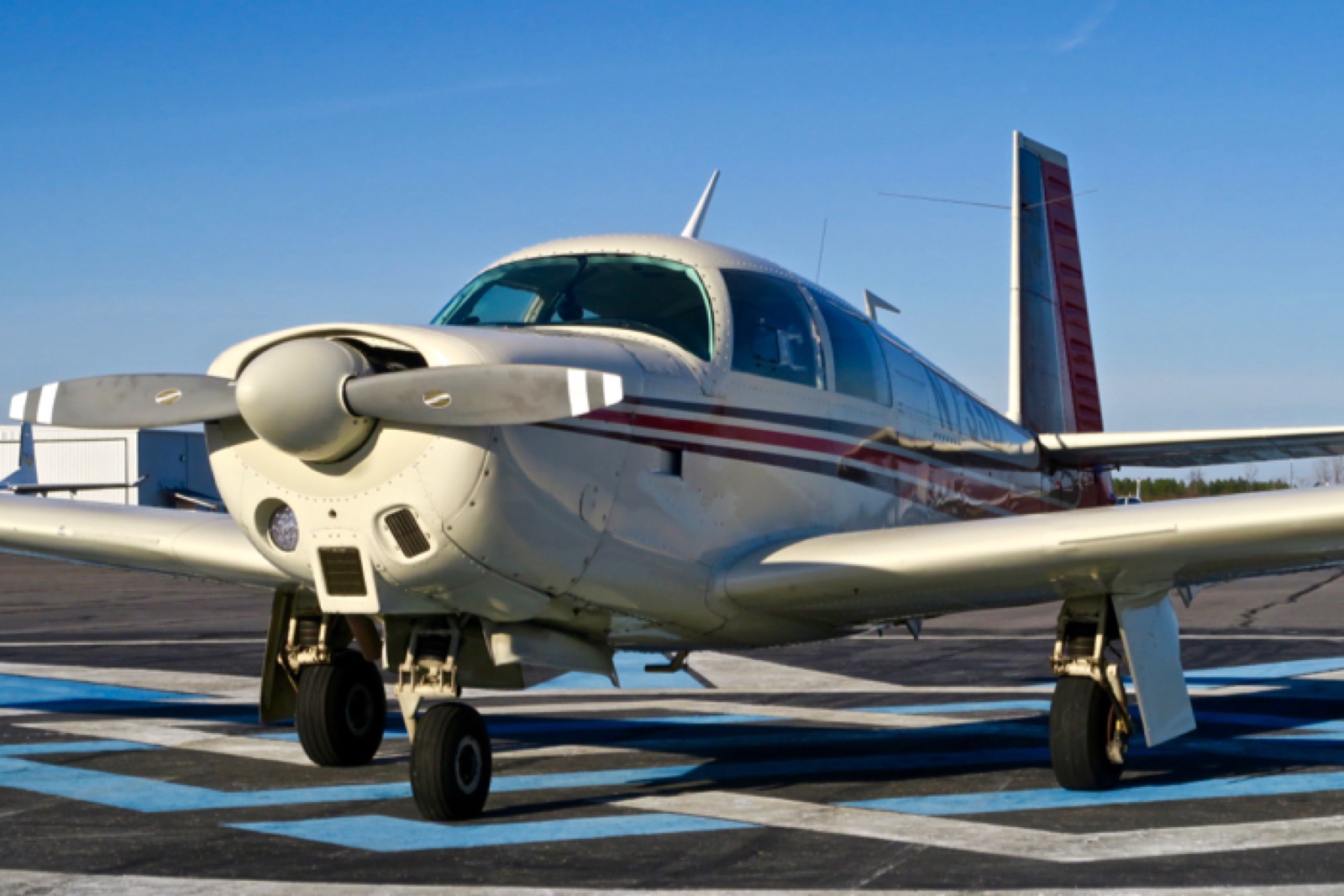

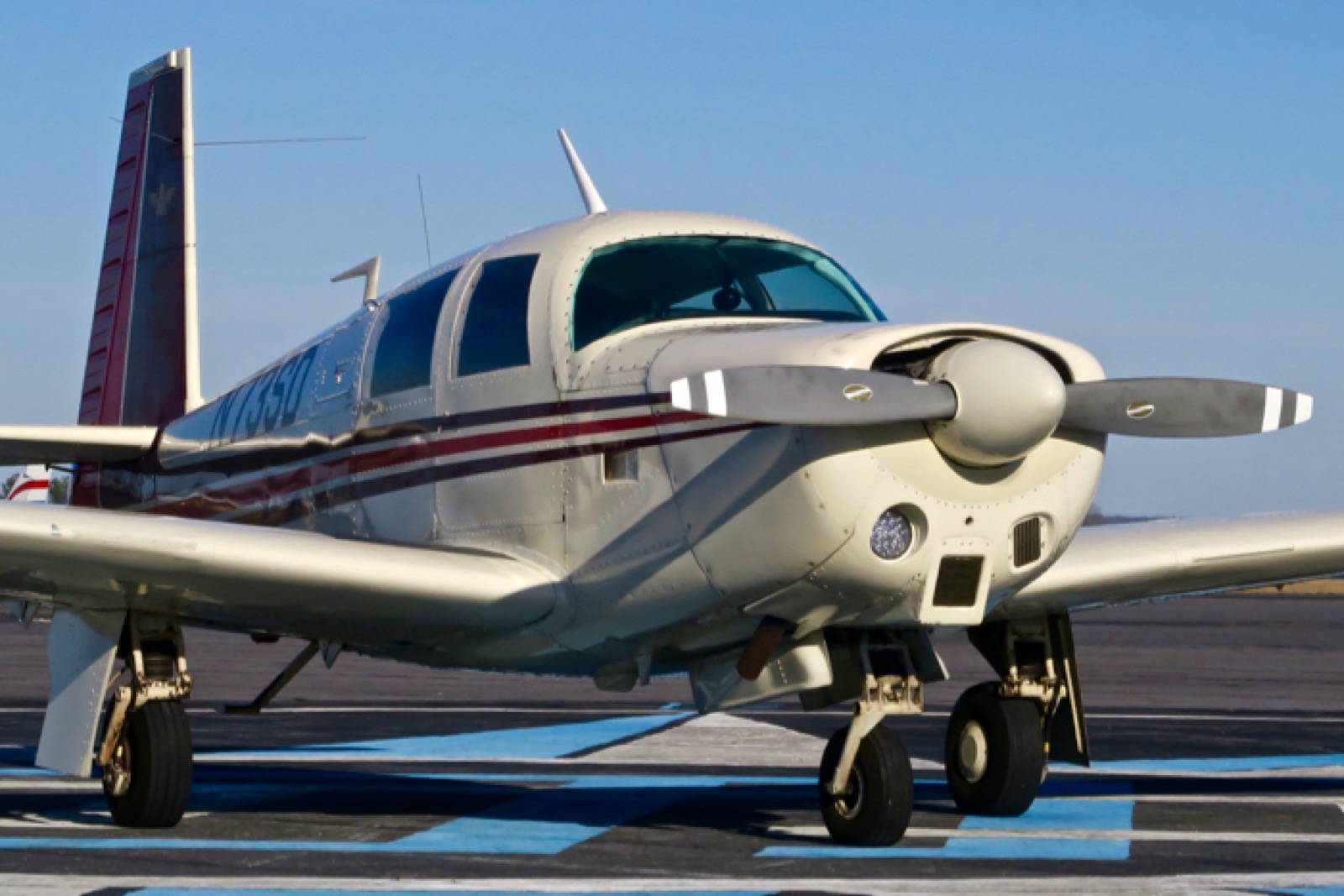

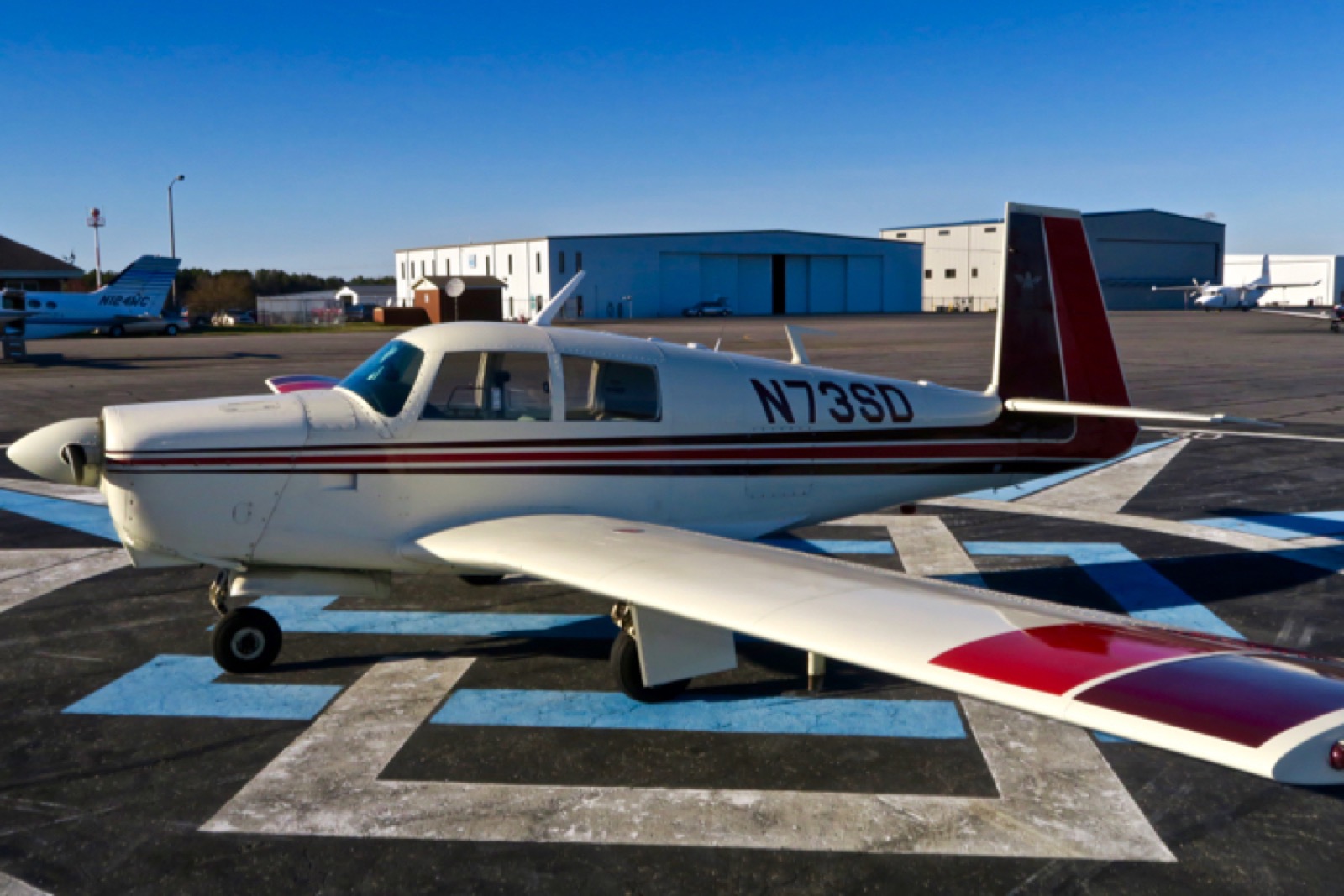

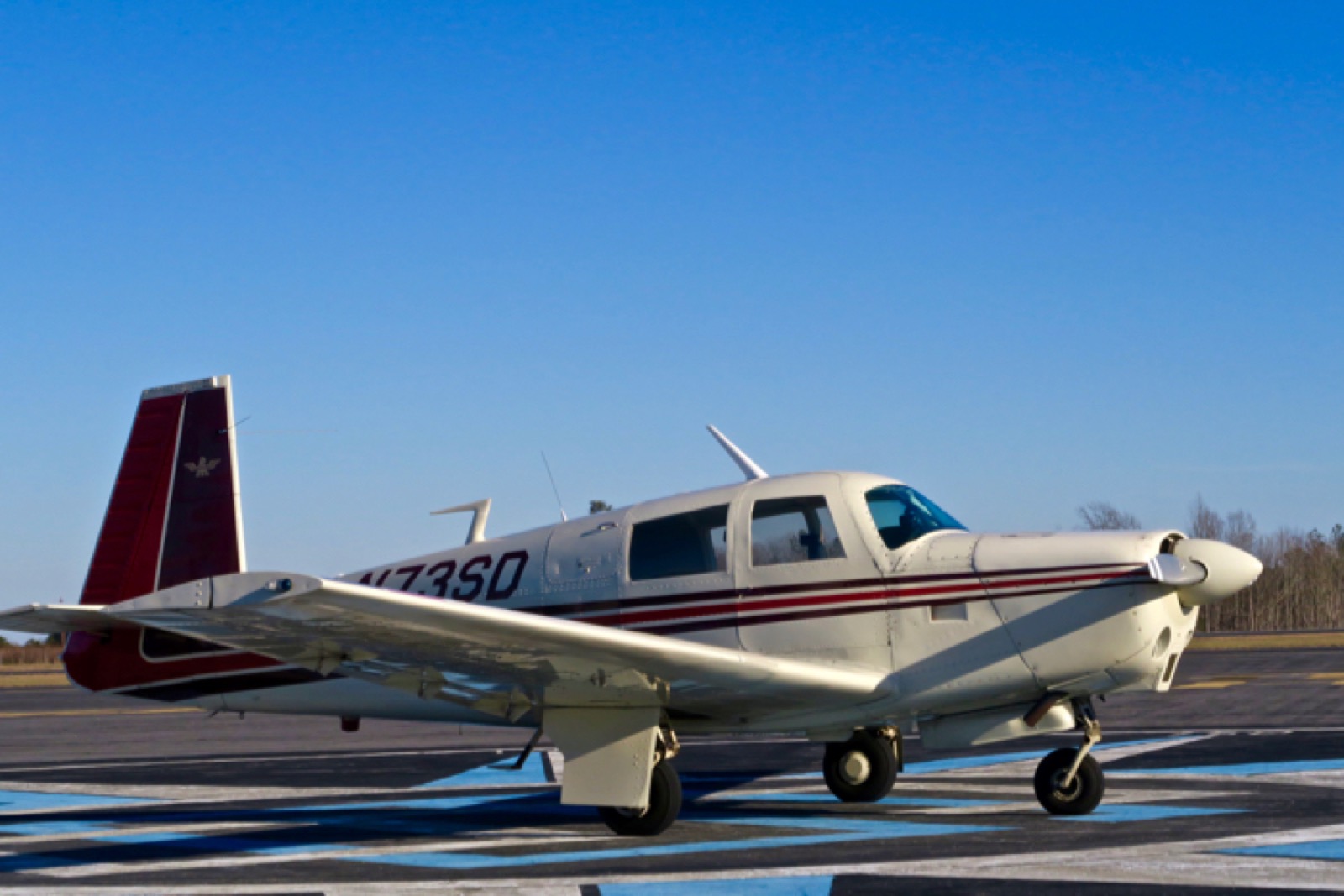

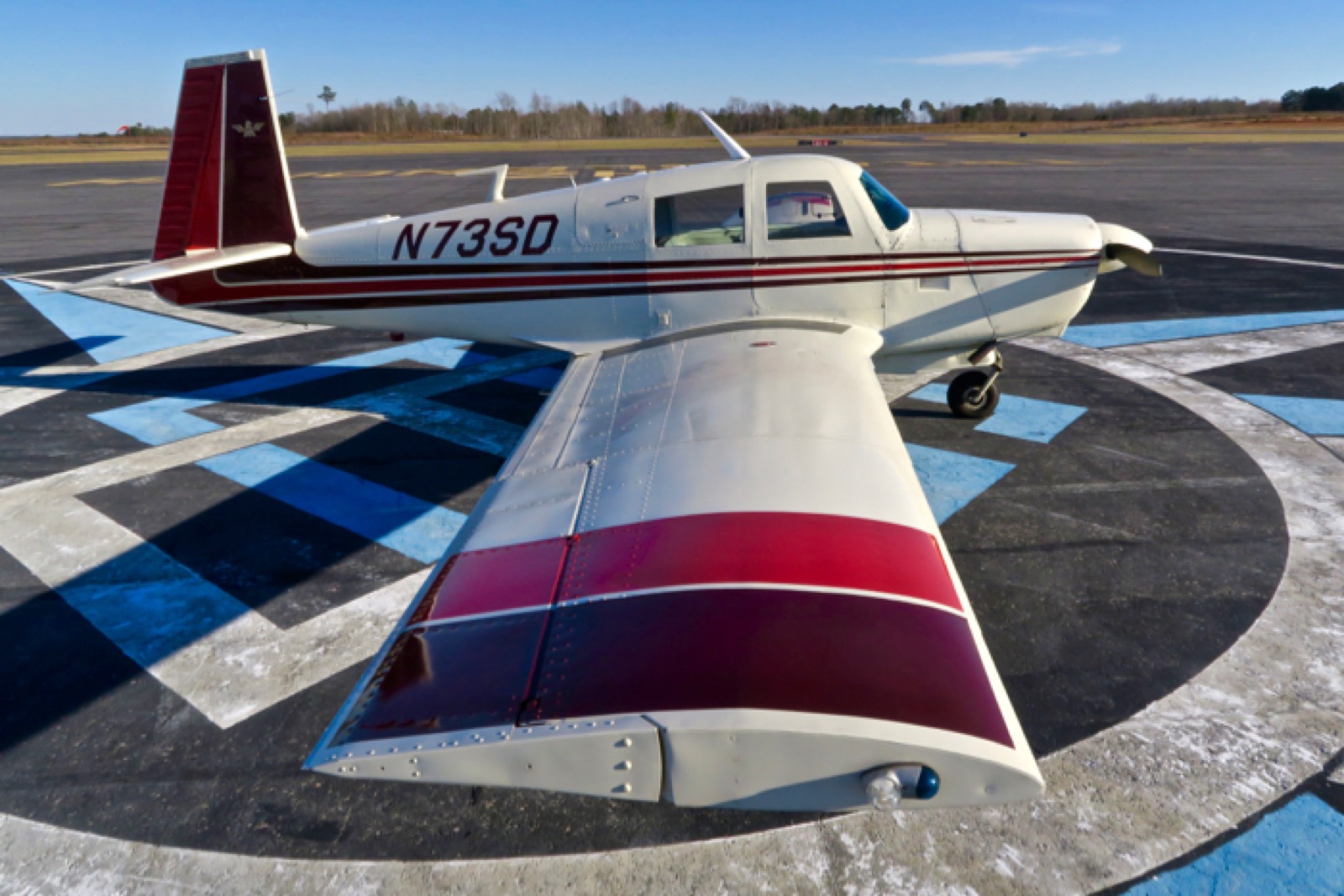

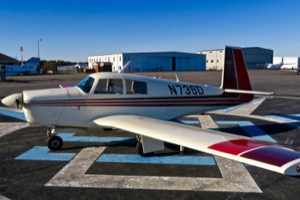

Exterior
Good condition, last strip and paint 1991
Overall buff tan with burgandy and red accents and stripes

Details
Lycoming O-360-A1D
- s/n L24710-36A
- 2,000 hr TBO

Hartzell 2-blade Propeller
- HC-C2YK-1BF
- s/n CH21646
- 5/2015 Full IRAN at H&H Triad

Useful Load: 909.29 lbs
Painted 1991
IFR Certification 8/2018
Last Annual Inspection 12/2016

1985 - Bird Strike - Right Horizontal Stab - repairs noted in logs with 337
Located at KLHZ (KLHZ Details)
Hangared
All Logs
